What Is a Magnetic Boom Gate?
A magnetic boom gate is a practical access control solution used to manage vehicles at commercial sites, residential complexes, car parks, industrial facilities, schools, warehouses, and private properties. It combines the physical barrier of a boom arm with a magnetic locking or magnetic sensing system to improve safety, reliability, and control. In simple terms, it helps stop unauthorised vehicles from entering an area while allowing approved vehicles to pass through smoothly.
Across Australia, boom gates are commonly installed where vehicle access needs to be controlled without fully closing off a driveway with a sliding or swing gate. A magnetic boom gate can be especially useful where fast operation, low maintenance, and controlled access are important. Whether it is used for an apartment car park, office building, factory entrance, strata complex, or paid parking facility, the system can be designed to suit the traffic flow, security level, and day-to-day operation of the site.
What Is a Magnetic Boom Gate?
A magnetic boom gate is a vehicle barrier system that uses magnetic technology as part of its operation, locking, detection, or control process. Depending on the design, the term may refer to a boom gate fitted with a magnetic lock, a magnetic limit switch, magnetic vehicle detection, or an electromagnetic holding system. In many access control applications, magnetic components are used to make the boom gate more reliable, safer, and easier to automate.
The main purpose of a magnetic boom gate is to control vehicle movement. The boom arm stays down to block access and lifts when a valid signal is received. That signal may come from a remote control, keypad, swipe card, intercom, licence plate recognition camera, mobile app, ticketing machine, or access control system.
In Australian commercial and residential settings, magnetic boom gates are often chosen because they offer a good balance between security, convenience, and speed. They are less intrusive than full-size automatic gates and can be installed in areas where vehicles need to move in and out frequently.

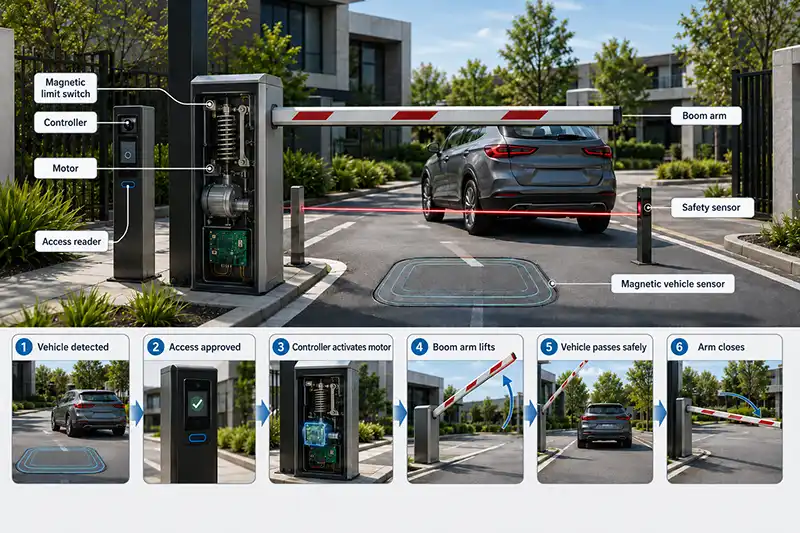

How a Magnetic Boom Gate Works
A magnetic boom gate works by using an automated motor and control system to raise and lower a boom arm. When a driver approaches the entry point, the system checks whether access should be granted. If the user is authorised, the control board activates the motor, and the boom arm lifts. Once the vehicle passes through, the boom arm lowers again.
Magnetic components can support this process in several ways. A magnetic limit switch may tell the control board when the arm is fully open or fully closed. A magnetic lock may help hold the arm securely in place when it is lowered. Magnetic vehicle detection may be used to sense whether a vehicle is present near the gate. These features help the boom gate operate accurately and reduce the risk of unnecessary wear, incorrect movement, or safety issues.
The operation is usually fast and simple. For busy car parks or commercial entries, a quick opening and closing speed is important because long delays can cause traffic build-up. Magnetic boom gates can be configured for smooth, reliable movement, especially when paired with suitable safety sensors and a properly sized motor.
Main Components of a Magnetic Boom Gate
A magnetic boom gate system is made up of several parts that work together. The exact components depend on the site, access method, and level of security required.
| Component | Purpose |
|---|---|
| Boom arm | The horizontal barrier that blocks or allows vehicle access |
| Motor unit | Raises and lowers the boom arm automatically |
| Control board | Processes access signals and controls the gate operation |
| Magnetic lock or magnetic switch | Helps with secure positioning, locking, or movement detection |
| Access control device | Allows approved users to activate the gate |
| Safety sensors | Detect vehicles, people, or obstructions near the gate |
| Vehicle detector | Senses when a vehicle is present at the entry or exit point |
| Power supply | Provides electricity to the motor and control system |
| Backup battery | Allows operation during power outages, if included |
| Housing cabinet | Protects the motor, control board, and internal parts |
A well-designed magnetic boom gate should not rely on only one component for safe operation. For example, magnetic positioning may help the boom arm stop correctly, while safety beams and vehicle loops help prevent the arm from lowering onto a vehicle.
Common Access Control Options
Magnetic boom gates can be connected to a wide range of access control systems. The best option depends on who uses the property, how often vehicles enter, and how much control the owner or manager needs.
| Access Method | Best Suited For | Key Benefit |
|---|---|---|
| Remote control | Small businesses, private properties, strata sites | Simple and convenient |
| Keypad | Staff parking, small commercial sites | No physical card required |
| Swipe card or fob | Apartment buildings, offices, secure car parks | Easy user management |
| Intercom | Visitor access, residential complexes | Allows manual approval |
| Licence plate recognition | Commercial car parks, high-traffic sites | Hands-free vehicle access |
| Ticket system | Paid parking areas | Supports visitor and casual parking |
| Mobile app | Modern residential and commercial sites | Flexible access management |
| Timer control | Schools, warehouses, scheduled access areas | Opens or restricts access at set times |
For many Australian properties, the best setup is a combination of access methods. For example, residents may use fobs, visitors may use an intercom, and managers may have remote access through a mobile system.
Benefits of a Magnetic Boom Gate
A magnetic boom gate offers a practical way to manage vehicles without creating unnecessary inconvenience. One of the biggest benefits is controlled access. The gate prevents unauthorised vehicles from entering a property, reducing the chance of parking misuse, congestion, or security issues.
Another key benefit is speed. Compared with a full sliding or swing gate, a boom gate usually opens and closes faster. This makes it suitable for locations with regular vehicle movement, such as apartment driveways, office car parks, schools, shopping areas, and industrial entrances.
Magnetic technology can also improve reliability. Magnetic switches and sensors are often less exposed to mechanical wear than traditional contact-based components. This can help the system maintain accurate positioning and consistent operation over time.
Magnetic boom gates are also space-efficient. They do not need the side clearance required for sliding gates or the swing area required for swing gates. This makes them a strong option where driveway space is limited or where the site layout does not allow for a full gate.
From a management perspective, a magnetic boom gate can make a property easier to control. Access can be granted, restricted, monitored, or changed depending on the system used. This is especially helpful for strata buildings, commercial properties, and staff parking areas.
Where Magnetic Boom Gates Are Commonly Used
Magnetic boom gates are used across many different Australian sites. They are particularly suitable for locations where vehicles need to be controlled, but pedestrian-level security is not the main concern.
Common applications include apartment car parks, office buildings, retail centres, private parking areas, warehouses, logistics centres, schools, universities, medical centres, hospitals, government facilities, hotels, and industrial estates.
For residential complexes, a magnetic boom gate can help stop non-residents from using private parking spaces. For commercial buildings, it can separate staff parking from visitor parking. For industrial sites, it can control delivery vehicle movement and improve site safety. For schools and childcare centres, it can help manage pick-up and drop-off access during busy periods.
Magnetic Boom Gate vs Standard Boom Gate
A standard boom gate and a magnetic boom gate may look similar from the outside, but the internal control and positioning technology can be different. Magnetic components can provide extra support for accurate operation, secure holding, or vehicle detection.
| Feature | Standard Boom Gate | Magnetic Boom Gate |
|---|---|---|
| Basic function | Controls vehicle entry and exit | Controls vehicle entry and exit |
| Position detection | May use mechanical switches | Often uses magnetic switches or sensors |
| Holding method | Mechanical stopping or motor resistance | May include magnetic locking or holding |
| Maintenance | Depends on design and components | Can reduce wear on certain parts |
| Reliability | Suitable for many sites | Strong option for frequent operation |
| Access control compatibility | Can connect to access systems | Can connect to access systems |
| Best use | General vehicle control | Sites needing smoother, more reliable control |
The right option depends on the site requirements. A standard boom gate may be suitable for a simple driveway. A magnetic boom gate may be better where the gate is used frequently, where access control accuracy matters, or where long-term reliability is important.
Important Safety Features
Safety is one of the most important parts of any automatic boom gate installation. A boom arm moves across a vehicle path, so the system must be designed to reduce the risk of contact with vehicles, pedestrians, cyclists, or property.
Common safety features include photoelectric beams, vehicle detection loops, safety edges, flashing lights, warning signs, and controlled closing delays. Some systems can also include obstruction detection, emergency release, and backup battery operation.
A magnetic boom gate should be installed so that the arm does not close while a vehicle is underneath it. This is usually achieved through vehicle loops or safety beams. In busy areas, extra sensors may be needed to detect tailgating, pedestrians crossing near the gate, or vehicles stopping halfway through the opening.
Pedestrian access should also be considered. A boom gate is designed for vehicles, not pedestrian control. If pedestrians need to pass through the area, a separate safe walkway should be provided. This is particularly important for schools, apartment buildings, commercial properties, and public-facing sites.
Choosing the Right Magnetic Boom Gate
Selecting the right magnetic boom gate is not just about choosing a product. It requires a proper understanding of the site, traffic flow, driveway width, security needs, and access control requirements.
The first factor to consider is the width of the driveway. The boom arm must be long enough to block the vehicle entry but not so long that it becomes unstable or slow to operate. Longer arms may require additional support, stronger motors, or a folding design where overhead clearance is limited.
The second factor is traffic volume. A boom gate used a few times per day does not need the same duty cycle as a gate used hundreds of times per day. For high-use sites, the motor and internal components must be designed for frequent operation.
The third factor is access control. A simple remote-control system may be enough for a small private car park. A larger commercial or strata site may need fob access, intercom integration, visitor management, or licence plate recognition.
Power availability is another important consideration. Most magnetic boom gates operate on mains power, but backup batteries or solar options may be considered where reliability is critical or where power supply is difficult.
Installation Considerations
A magnetic boom gate should be installed on a stable and level surface. The cabinet usually needs to be fixed to a concrete footing or slab that can support the gate during repeated operation. Poor installation can lead to vibration, misalignment, unreliable closing, or premature wear.
The driveway layout must also be reviewed. The gate should be placed where vehicles have enough room to stop safely before the boom arm. There should also be enough space after the gate for the vehicle to clear the area before the arm lowers. If vehicles are likely to queue, the entry layout should be designed to avoid blocking the street or nearby traffic.
Electrical and communication cabling may be required for power, access control, intercoms, sensors, and network-connected devices. For existing properties, trenching or surface conduits may be needed. For new developments, it is better to plan the boom gate early so the required conduits and power points can be included before concrete or driveway works are completed.
Weather exposure is another factor. In Australia, boom gates may be exposed to heat, rain, dust, wind, and coastal conditions. The housing, arm, fixings, and electrical components should be selected to suit the environment. Coastal locations may require corrosion-resistant materials and more frequent maintenance.
Maintenance Requirements
A magnetic boom gate is generally low maintenance, but it still needs regular inspection to remain safe and reliable. Maintenance should include checking the boom arm alignment, motor operation, control board, safety sensors, magnetic switches, access devices, and backup battery if installed.
The cabinet should be kept clean and dry. Dust, insects, water entry, and corrosion can affect internal components. Safety beams should be cleaned and tested because dirt or misalignment may cause the gate to stop working correctly.
The boom arm should be checked for damage, especially in car parks where accidental impact can happen. Reflective strips, warning labels, and lights should also be inspected to make sure the gate remains visible to drivers.
For high-traffic sites, scheduled servicing is strongly recommended. This helps identify small issues before they become major failures. A gate that stops working during peak hours can cause frustration, traffic delays, and security problems.
| Maintenance Task | Suggested Frequency |
|---|---|
| Visual inspection of boom arm and cabinet | Monthly |
| Test safety sensors and vehicle detection | Monthly |
| Check access control devices | Every 1–3 months |
| Inspect magnetic switches or locking components | Every 3–6 months |
| Test backup battery | Every 3–6 months |
| Professional servicing | Every 6–12 months |
| Full system review for high-use sites | Annually or as required |
Common Problems and Troubleshooting
Like any automated system, a magnetic boom gate may experience issues over time. Some problems are simple, while others require a qualified technician.
| Problem | Possible Cause | Recommended Action |
|---|---|---|
| Boom arm does not open | Power issue, faulty remote, control board fault | Check power and access device, then call a technician |
| Boom arm does not close | Safety beam blocked, vehicle loop detecting presence | Clear the area and test sensors |
| Gate opens randomly | Remote interference, faulty access control, wiring issue | Inspect controls and seek professional support |
| Arm stops halfway | Motor issue, obstruction, limit switch fault | Stop using the gate and arrange servicing |
| Slow operation | Motor wear, incorrect settings, low battery | Check power supply and service the system |
| Gate makes unusual noise | Mechanical wear, loose parts, internal damage | Book maintenance before further damage occurs |
| Access device not working | Flat remote battery, fob issue, keypad fault | Test another device and replace batteries if needed |
It is usually not a good idea to force the boom arm manually unless the system has been placed into manual release mode. Forcing the arm can damage the motor, gearbox, spring mechanism, or magnetic components.
Magnetic Boom Gates for Strata Properties
Strata properties often need a balance between security, convenience, and fair access for residents. A magnetic boom gate can be a suitable option because it allows residents to enter and exit easily while reducing unauthorised parking.
For strata buildings, access management is important. Lost remotes or fobs should be removed from the system, new residents should be added easily, and visitor access should be controlled. A poorly managed access system can create security gaps even if the physical boom gate is working properly.
It is also important to consider emergency access, delivery access, and maintenance access. Fire services, trades, waste collection vehicles, and building managers may need reliable entry. The system should be designed so authorised access can be provided without compromising security.
Noise should also be considered in residential buildings. The motor should operate smoothly, and the gate should not create unnecessary impact noise when opening or closing. A quality magnetic boom gate with proper installation can help reduce disturbance for nearby residents.
Magnetic Boom Gates for Commercial and Industrial Sites
Commercial and industrial sites often have different requirements from residential properties. They may need higher duty cycles, stronger components, wider boom arms, and integration with staff access systems or security monitoring.
For warehouses and logistics centres, boom gates can help manage truck movement, separate staff and visitor areas, and improve site safety. For office buildings, they can control staff parking and prevent unauthorised use of private spaces. For retail centres, they may be integrated with paid parking systems or time-based access control.
Industrial sites should also consider impact risk. Heavy vehicles, forklifts, delivery trucks, and trailers can increase the chance of damage. In these environments, the boom gate location, arm type, visibility, signage, and protective bollards should all be carefully planned.
Cost Factors
The cost of a magnetic boom gate can vary depending on the size of the system, the quality of components, access control requirements, site conditions, and installation complexity. A basic system for a small private car park will usually cost less than a high-use commercial system with licence plate recognition, intercom integration, safety loops, and network access.
Major cost factors include boom arm length, motor duty cycle, magnetic locking or sensor features, safety devices, access control system, cabling, concrete footing, trenching, power supply, backup battery, protective bollards, and ongoing maintenance.
Choosing the cheapest option may not always be the best decision. A low-quality boom gate can cost more in the long run if it breaks down regularly, causes access issues, or requires frequent repairs. For busy Australian sites, reliability and safety should be prioritised over the lowest upfront price.
Advantages and Limitations
| Advantages | Limitations |
|---|---|
| Fast vehicle access control | Does not provide full pedestrian security |
| Suitable for high-traffic areas | Can be damaged by vehicle impact |
| Can integrate with many access systems | Requires power and control wiring |
| Space-efficient compared with sliding gates | Needs proper safety devices |
| Good option for car parks and commercial sites | Not ideal where full perimeter security is required |
| Magnetic components can improve reliability | Professional installation is recommended |
A magnetic boom gate is not always the right solution for every property. If the goal is to fully secure a perimeter against pedestrians or intruders, a sliding gate or swing gate may be more suitable. However, if the main goal is to control vehicle access quickly and efficiently, a magnetic boom gate is often a practical choice.
Final Thoughts
A magnetic boom gate is a reliable and efficient way to control vehicle access across residential, commercial, industrial, and public-facing properties in Australia. It combines the convenience of automated operation with the accuracy and reliability of magnetic technology. When properly selected and installed, it can improve traffic flow, reduce unauthorised parking, support site security, and make access management much easier.
The best system will depend on the site layout, traffic volume, security needs, access control method, safety requirements, and long-term maintenance plan. For a small residential car park, a simple magnetic boom gate with remote or fob access may be enough. For a busy commercial or industrial site, a more advanced system with vehicle detection, safety sensors, licence plate recognition, and backup power may be required.
A magnetic boom gate should always be viewed as part of a complete access control strategy. The boom arm, motor, magnetic components, safety sensors, access devices, and installation quality all play an important role in how well the system performs. With the right design and regular servicing, a magnetic boom gate can provide many years of smooth, safe, and dependable operation.
