Sliding Boom Gate: A Practical Access
A sliding boom gate is a specialised vehicle access control system designed for locations where a traditional rising boom arm may not be practical. Instead of lifting vertically, the barrier arm moves horizontally to open and close an entry point. This makes it particularly useful in areas with overhead height restrictions, strong wind exposure, or site layouts where a standard boom gate cannot operate efficiently.
Sliding boom gates are commonly used across commercial properties, industrial sites, warehouses, logistics yards, mining operations, car parks, and private access roads. They provide a clear physical barrier while allowing controlled vehicle movement in and out of a site. Depending on the application, they can be manually operated or integrated into an automated access control system with remotes, keypads, card readers, intercoms, sensors, or number plate recognition technology.
What Is a Sliding Boom Gate?

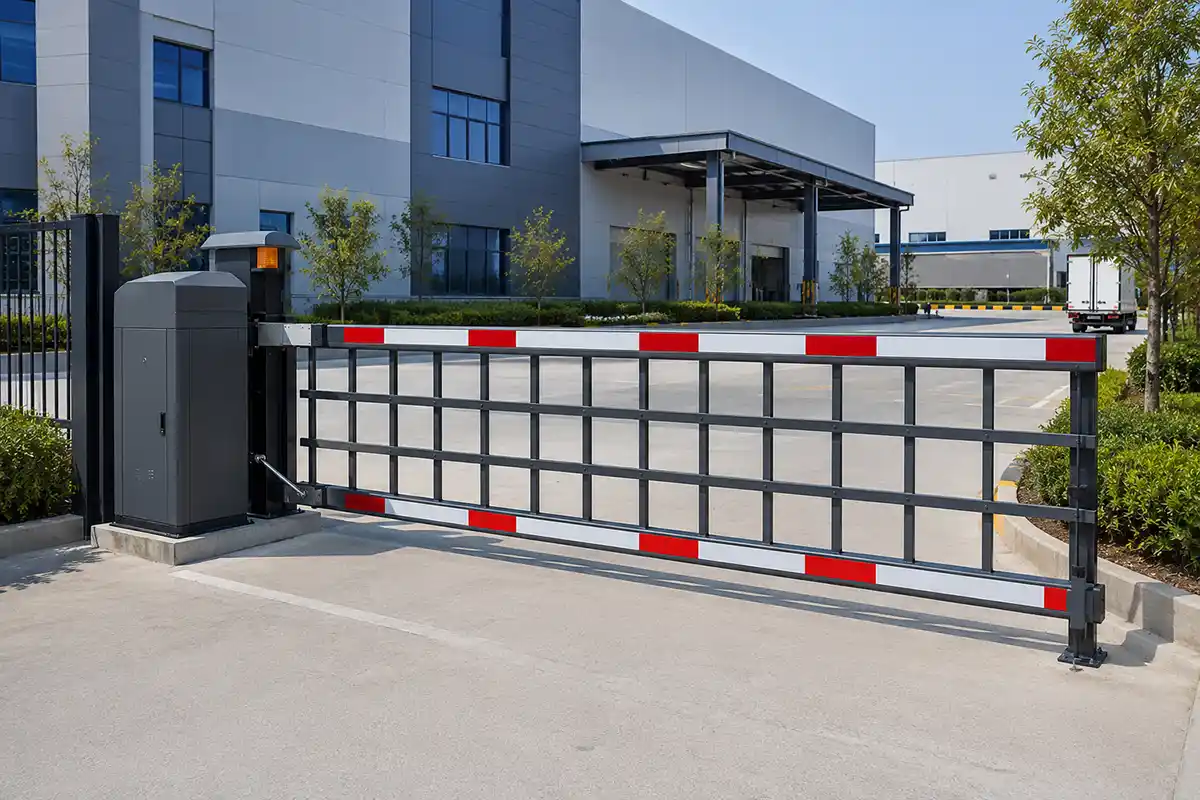

A sliding boom gate is a horizontal vehicle barrier that opens by retracting sideways rather than rotating upward. The barrier arm is usually mounted on a support frame or track system, allowing it to slide left or right to clear the driveway or entry lane.
Its core purpose is similar to a conventional boom gate: to prevent unauthorised vehicle access, manage traffic flow, and define restricted areas. However, its side-sliding operation gives it an advantage in settings where vertical opening space is limited or undesirable.
Unlike a sliding driveway gate, a sliding boom gate does not typically create a full-height security barrier. Instead, it provides a visible and efficient traffic control point. It is often selected when the main concern is access management rather than complete perimeter security.
How a Sliding Boom Gate Works
The operation of a sliding boom gate is relatively straightforward. When access is granted, the barrier arm moves sideways along a guided path until the driveway is clear. Once the vehicle has passed, the boom arm returns to its closed position.
In a manual system, a person physically opens and closes the barrier, usually with assistance from rollers, counterbalancing, or a lightweight frame design.
In an automated system, an electric motor drives the horizontal movement of the arm. The gate can then be controlled through a range of access devices and safety systems.
Typical operating steps include:
- A user requests access through a remote, keypad, card reader, intercom, or automatic trigger.
- The control unit checks the signal and activates the motor.
- The boom arm slides sideways to open the lane.
- The vehicle passes through the access point.
- Safety sensors confirm the path is clear.
- The boom gate slides back into the closed position.
Sliding Boom Gate vs Traditional Rising Boom Gate
Both sliding and rising boom gates are designed to control vehicle entry, but their operating methods and ideal applications differ.
| Feature | Sliding Boom Gate | Rising Boom Gate |
|---|---|---|
| Opening direction | Moves horizontally | Lifts vertically |
| Overhead clearance required | No | Yes |
| Suitable for low ceiling areas | Excellent | Limited |
| Wind resistance | Often better in exposed sites | Long arms may be affected by wind |
| Space needed beside driveway | Yes | Minimal side clearance |
| Common use | Warehouses, covered car parks, height-restricted areas | Car parks, commercial entries, toll lanes |
| Barrier visibility | Very clear at driver eye level | Very clear at driver eye level |
| Automation compatibility | High | High |
A traditional rising boom gate remains the more common choice for open-air entries, but a sliding boom gate can be the better solution when the site has practical restrictions that make vertical movement difficult.

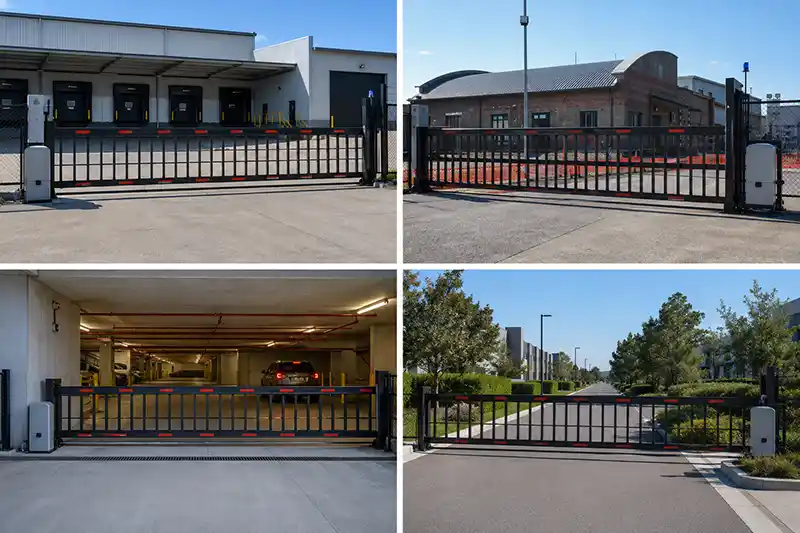

Where Sliding Boom Gates Are Commonly Used
Sliding boom gates can suit a wide range of properties, particularly where access control needs to be simple, visible, and durable.
Covered Car Parks
Basement car parks and multi-level parking structures often have restricted overhead clearance. A rising boom gate may not be suitable if the arm cannot lift fully without hitting the ceiling, pipes, signage, or structural beams. A sliding boom gate removes that issue by operating sideways.
Warehouses and Loading Areas
Warehouses often need to control vehicle movement near loading docks, service roads, or staff-only access points. A sliding boom gate can separate traffic zones without taking up vertical space above forklifts, loading vehicles, or building services.
Industrial Facilities
Factories, depots, and logistics centres use sliding boom gates to manage entry into operational yards and restricted work areas. They help prevent unauthorised vehicles from entering spaces where heavy machinery or site-specific safety rules apply.
Mining and Remote Sites
Remote industrial environments often need robust access control systems that remain practical in harsh conditions. Sliding boom gates can be suitable where wind, dust, or site geometry make other gate systems less appropriate.
Private Roads and Shared Access Lanes
A sliding boom gate can be used at private roads, rural driveways, business parks, or shared access points where the goal is to discourage unauthorised entry while allowing easy access for approved users.
High-Wind Locations
Long vertical boom arms can be affected by strong wind, particularly in open and exposed areas. Because a sliding boom gate stays closer to the horizontal plane and is mechanically guided, it may provide a more stable alternative in some environments.
Main Components of a Sliding Boom Gate
Although designs vary, most sliding boom gate systems include several key parts.
| Component | Purpose |
|---|---|
| Boom arm | The horizontal barrier that blocks vehicle entry |
| Support post or cabinet | Holds the mechanism and supports the gate structure |
| Sliding track or guide system | Allows the barrier arm to move sideways smoothly |
| Rollers or carriage | Reduces friction and supports motion |
| Motor unit | Powers automatic opening and closing |
| Control board | Manages signals, settings, timing, and safety logic |
| Limit switches | Stop the barrier at the correct open and closed positions |
| Access control devices | Remotes, keypads, intercoms, cards, or number plate recognition |
| Safety sensors | Detect vehicles or obstructions in the movement zone |
| Flashing light or signage | Warns users when the gate is moving |
The overall design should be selected based on the width of the access lane, expected traffic volume, environmental conditions, and whether the gate will be manual or automated.
Manual Sliding Boom Gates
Manual sliding boom gates are often used for low-traffic areas or sites that do not require frequent vehicle access. They are generally simpler and more cost-effective than automated models, making them suitable for rural properties, temporary work zones, private roads, or storage yards.
A manual sliding boom gate may include:
- A lockable barrier arm
- Smooth rollers or a low-friction track
- A simple pull or push mechanism
- Reflective markings for driver visibility
- Galvanised or powder-coated steel components
The main benefit of a manual system is simplicity. There are fewer electrical parts to maintain, and installation costs are usually lower. However, they require someone to physically operate the gate, which may not be practical for busy sites or locations requiring convenience and remote control.
Automated Sliding Boom Gates
Automated sliding boom gates are better suited to commercial, industrial, and high-use environments. Once integrated with access control technology, they can operate efficiently without on-site staff manually opening or closing the gate.
Common control options include:
- Handheld remote controls
- Smartphone access systems
- Keypads with PIN codes
- Swipe card or fob readers
- Vehicle loop detectors
- Intercom systems
- GSM call-to-open systems
- Number plate recognition cameras
Automation improves convenience, traffic flow, and access management. It also allows site managers to set authorised user permissions, log entries, and combine the boom gate with broader security infrastructure.
Benefits of a Sliding Boom Gate
Suitable for Sites with Low Overhead Clearance
This is one of the biggest advantages. Where roof structures, ceiling services, signage, or low awnings limit vertical space, a sliding boom gate can provide a clean and practical solution.
Clear Vehicle Access Control
A sliding boom arm creates an obvious visual barrier. Drivers immediately understand that the lane is controlled and that they must stop or wait for permission to proceed.
Flexible for Different Site Layouts
Because the arm travels sideways, the system can be adapted to sites where a rising arm is awkward, visually intrusive, or mechanically unsuitable.
Strong Commercial and Industrial Appeal
Sliding boom gates are particularly useful for business environments that need a durable, traffic-oriented barrier without installing a full sliding security gate.
Compatible with Modern Automation
They can be integrated with a wide range of access control options, from simple remotes to advanced number plate recognition systems.
Can Reduce Risks Associated with Vertical Swing
In certain areas, the absence of an upward-moving arm may help avoid conflicts with overhead structures, suspended signs, low canopies, or building services.
Effective for Traffic Management
They can help regulate access during business hours, separate public and staff vehicle movements, and prevent cars from entering loading zones or restricted operational areas.
Design Considerations Before Choosing a Sliding Boom Gate
Selecting the right sliding boom gate requires more than simply choosing a barrier arm. The full site conditions should be assessed to ensure the system works reliably and safely.
Driveway Width
The gate arm must be long enough to cover the access lane when closed. Wider driveways may require a stronger structural design or a customised system.
Side Clearance
Because the arm slides sideways, there must be sufficient space beside the entry lane to accommodate the full barrier length when open. This is a crucial requirement.
Traffic Frequency
A lightly used private road may only need a simple manual option, while a busy commercial site may require a fast, heavy-duty automated model.
Power Availability
Automated systems need a dependable power source. In remote settings, solar-powered options may also be considered where the gate usage level and site conditions allow.
Wind and Weather Exposure
Outdoor systems should be selected with durability in mind. Corrosion resistance, strong frames, sealed electronics, and suitable coatings are particularly important in coastal or exposed locations.
Safety Requirements
A professionally designed automated sliding boom gate should include appropriate safety devices. These may include photocells, vehicle detection loops, safety edges, warning lights, and emergency release features.
Integration with Existing Security
The boom gate may need to work alongside CCTV, intercoms, pedestrian gates, perimeter fencing, or building management systems. Planning this at the beginning can prevent future compatibility issues.
Sliding Boom Gates for Commercial Properties
Commercial premises often use sliding boom gates as part of a broader access management system. They are useful for:
- Staff car park entries
- Visitor parking areas
- Delivery vehicle access
- Restricted service roads
- Contractor-only areas
- Business park driveways
A commercial sliding boom gate can create a more professional and organised entrance while helping control traffic movement. When paired with access control technology, businesses can decide who enters, when they enter, and how access is granted.
For example, staff may use remote controls or cards, visitors may call through an intercom, and delivery drivers may be permitted entry through a scheduled access procedure. This creates a controlled yet practical entry system.
Sliding Boom Gates for Industrial Sites
Industrial facilities tend to require more robust equipment due to higher traffic, larger vehicles, and harsher operating conditions. A sliding boom gate in these environments should be designed for frequent operation and reliable performance.
Typical industrial applications include:
- Warehouse entrances
- Manufacturing yards
- Distribution centres
- Equipment storage compounds
- Construction vehicle entries
- Waste management sites
- Mining support facilities
Heavy-duty frames, durable mechanical components, and high-cycle motors may be needed where the gate opens repeatedly throughout the day. The access lane design should also account for trucks, utes, forklifts, and other site vehicles.
Sliding Boom Gates for Car Parks
Car park entries are one of the most practical uses for sliding boom gates, particularly when overhead space is limited. In basement and multi-storey car parks, the ceiling height may make standard boom arms difficult to install. A sliding system eliminates the upward clearance requirement while still maintaining an efficient parking access point.
Car park sliding boom gates can be combined with:
- Ticketing systems
- Access cards
- Remote controls for tenants
- Intercom entry
- Visitor access systems
- Vehicle detection loops
- Licence plate recognition
This makes them suitable for residential apartments, office car parks, private parking areas, and commercial buildings.
Materials and Finishes
The materials used in a sliding boom gate should match the environment and expected wear.
Common materials include:
- Powder-coated aluminium for lightweight barrier arms
- Galvanised steel for structural frames
- Stainless steel components in harsh or coastal environments
- Reflective strips for night-time visibility
- UV-stable coatings for long-term outdoor use
The finish should not only look neat but also protect the equipment from corrosion, moisture, heat, and daily use.
Safety Features for Automated Sliding Boom Gates
Any automated barrier should be installed with safety in mind. While sliding boom gates are simple in principle, their movement still needs to be controlled to reduce risks to vehicles, people, and equipment.
Important safety features may include:
| Safety Feature | Function |
|---|---|
| Photocell sensors | Detect obstructions in the gate path |
| Vehicle loop detectors | Prevent closing while a vehicle is present |
| Safety edges | Stop or reverse movement if contact occurs |
| Warning light | Alerts users that the gate is moving |
| Manual release | Allows operation during power failure |
| Emergency stop | Provides immediate shutdown if required |
| Soft start and soft stop | Reduces mechanical stress and sudden movement |
The right safety configuration depends on how the gate is positioned, who uses it, and how often it operates.
Maintenance Requirements
Like any moving access control system, a sliding boom gate benefits from regular inspection and servicing. Maintenance helps reduce breakdowns, improve safety, and extend the life of the equipment.
Typical maintenance tasks include:
- Checking rollers, wheels, and guide tracks
- Removing dirt, debris, or obstructions
- Inspecting motor performance
- Testing safety sensors
- Tightening fixings where required
- Checking limit switches and control settings
- Inspecting boom arm alignment
- Reviewing access control operation
- Looking for signs of rust or corrosion
For commercial and industrial sites, scheduled servicing is usually the best approach, especially where the gate forms part of daily operations.
Common Problems and Their Causes
A sliding boom gate may develop issues if it is poorly installed, underspecified, or not maintained correctly.
| Problem | Possible Cause |
|---|---|
| Gate opens slowly | Motor wear, friction, track debris, or incorrect setup |
| Barrier arm does not close fully | Limit switch issue or obstruction |
| No response from remote or keypad | Control system fault or power problem |
| Jerky sliding movement | Damaged rollers, poor alignment, or dirty guide track |
| Gate stops unexpectedly | Safety sensor activation or control board fault |
| Excessive noise | Loose components or mechanical wear |
Prompt attention to these issues can prevent minor faults from turning into major failures.
Sliding Boom Gate vs Sliding Security Gate
Although the names sound similar, a sliding boom gate and a sliding security gate serve different purposes.
A sliding boom gate is mainly used for vehicle traffic control. It stops cars from entering but does not usually create a tall physical security barrier.
A sliding security gate, on the other hand, is typically a full-height metal gate designed to prevent both vehicle and pedestrian access. It is better suited where perimeter security is the priority.
Some sites use both together. For example, a sliding security gate may remain closed outside business hours, while a sliding boom gate manages vehicle access during operating hours.
Is a Sliding Boom Gate Right for Your Site?
A sliding boom gate can be an excellent choice when:
- Overhead clearance is limited
- A standard rising boom gate is not suitable
- The site needs vehicle access control rather than full-height security
- Side clearance is available
- The entry point is used by cars, service vehicles, or staff
- The system needs to integrate with automation or access control
It may not be the best option where there is no space beside the driveway for the boom arm to retract, or where the site requires a complete anti-intrusion security gate rather than a traffic barrier.
Conclusion
A sliding boom gate is a smart and practical access control solution for commercial, industrial, and private sites where vertical boom arm operation is restricted or less suitable. By moving horizontally instead of lifting upward, it offers a flexible alternative for covered car parks, warehouses, loading zones, and other specialised entry points.
With options ranging from simple manual barriers to fully automated systems integrated with advanced access control, sliding boom gates can be tailored to suit different budgets, usage levels, and site requirements. When correctly selected and professionally installed, they provide clear traffic control, improved access management, and dependable day-to-day operation.
