How to Program a Gate Remote Control
A gate remote control makes everyday access faster, safer and more convenient. Whether you have a sliding driveway gate, swing gate, electric gate opener or a full automatic gate system, the remote works by sending a coded radio signal to a receiver connected to the gate motor or control board.
Many homeowners search for how to program an auto gate remote control, how to program an electric gate remote control, or how to reprogram a gate remote control after replacing, losing or adding a transmitter. While the exact steps vary depending on the brand and receiver type, most systems follow a similar process: identify the remote and receiver, enter learning mode, press the chosen remote button, then test the gate operation.
This guide explains how gate remotes work, the main programming methods, when a remote can be duplicated, how to reprogram a gate remote control, and what to do when programming does not work.
What Does Programming a Gate Remote Control Mean?
Programming a gate remote control means pairing a handheld transmitter with the gate’s receiver so the system recognises that remote as an authorised access device. Once programmed, pressing the remote button sends a radio signal that tells the gate controller to open, close, stop or trigger a pedestrian opening mode, depending on how the system is configured.
In most automatic gate systems, the remote itself does not directly control the motor. Instead, it communicates with a receiver. The receiver then passes a command to the gate control board.
| Component | What It Does |
|---|---|
| Gate remote control | Sends the wireless signal |
| Radio receiver | Receives and recognises approved remote signals |
| Control board | Processes the command |
| Gate motor | Moves the gate open or closed |
| Antenna, if fitted | Helps improve reception range |
Some receivers are built into the gate control board, while others are separate external receivers installed inside the gate control box or nearby enclosure.
Before You Program an Automatic Gate Remote
Before you start, it is worth checking a few basic details. This saves time and reduces the risk of accidentally erasing existing remotes.
1. Confirm the Remote Is Compatible
A new remote must match the type of receiver used by your gate system. Compatibility may depend on:
- Brand
- Frequency, such as 433 MHz or 868 MHz
- Coding type
- Rolling code or fixed code technology
- Receiver model
A remote that looks similar is not always compatible. Two remotes may have the same number of buttons and still use different communication protocols.
2. Check the Battery
If the battery is weak, the remote may not program correctly or may appear to work only at very close range. Before attempting to code a gate remote control, replace the battery if the LED is dim, inconsistent or does not light up at all.
3. Locate the Receiver or Control Board
To program many gate remotes, you need access to the receiver’s learn button, radio button or programming menu. This is usually located:
- Inside the motor housing
- Inside the gate control box
- On a plug-in receiver module
- On the main electronic control board
The exact label may vary. Common names include:
- Learn
- Code
- Memo
- Radio
- CH1 or Channel 1
- CH2 or Channel 2
4. Know Which Gate Function You Want
Some gate systems allow different remote buttons to trigger different commands. For example:
| Remote Function | Typical Use |
|---|---|
| Full open / close | Opens the gate fully for vehicles |
| Pedestrian opening | Opens one leaf or partially opens the gate |
| Auxiliary output | May control a light, garage door or second gate |
| Stop command | Stops movement on some systems |
Choosing the correct receiver channel matters. If the remote is programmed to the wrong channel, it may not perform the action you expect.
How to Program an Auto Gate Remote Control
The most common method is direct programming through the receiver or control board. The instructions below are general and apply to many automatic gate openers, although the wording and exact timing can vary by manufacturer.
General Programming Method

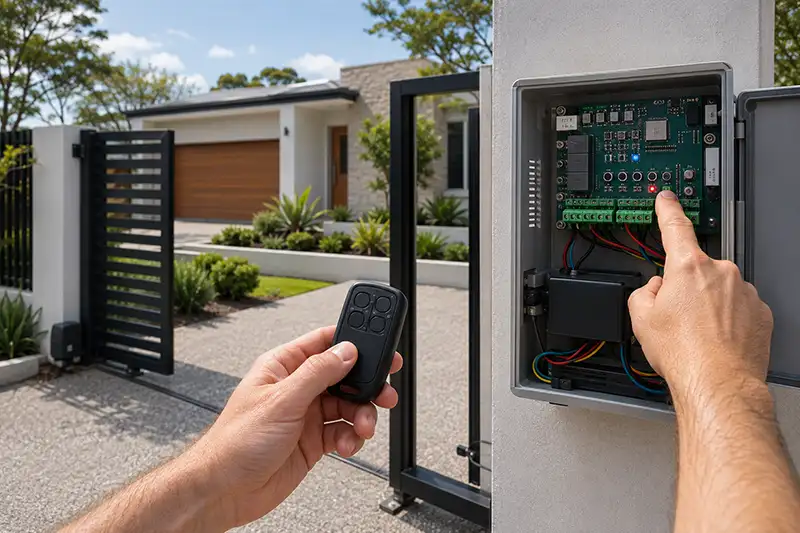

- Open the gate motor housing or control box and locate the radio receiver or control board.
- Find the button labelled Learn, Radio, Memo, Code or a similar term.
- Press the programming button briefly. An LED light may turn on, flash or stay solid to show the receiver is in learning mode.
- Within a few seconds, press and hold the button on the new gate remote you want to use.
- Wait for the receiver LED to flash, turn off or otherwise confirm that the signal has been stored.
- Release the remote button.
- Step away from the gate and test the remote.
- Repeat the process for extra remotes or extra functions if required.
On some systems, the receiver confirms successful programming through a flash sequence, display message or LED status change. Some BFT and King Gates systems, for example, use a radio programming menu or radio button sequence to store new transmitters.
How to Program an Electric Gate Remote Control Using an Existing Remote
Some gate systems support remote-to-remote or wireless programming. This allows a new remote to be added without opening the gate control box, provided you already have a working authorised remote.
The broad process is usually:
- Stand within range of the gate receiver.
- Activate the programming sequence on the working remote.
- Press the button on the new remote that you want to store.
- Wait for a confirmation flash or response from the gate system.
- Test the new remote.
This feature is brand-specific and is not available on all receivers. Some systems require a hidden button combination or a special sequence using the existing transmitter. Others only allow this mode if wireless programming has not been disabled by the installer.
How to Program a Gate Remote Control With a Display Menu
Higher-end gate controllers may use a digital display rather than a simple learn button. In that case, the process may involve navigating a menu.
A typical menu-based sequence looks like this:
- Enter the programming menu on the control board.
- Select the Radio or Transmitter section.
- Choose the function you want to add, such as Start or Pedestrian.
- Press the required button sequence on the remote.
- Wait for the display to confirm that the remote has been accepted.
- Exit the menu and test the remote.
This method is common on some professional automatic gate controllers where remote management, channel selection and memory functions are built into the board.
Common Gate Remote Programming Methods
| Programming Method | How It Works | Best For |
|---|---|---|
| Receiver learn button | Press a button on the receiver, then press the remote | Most residential gate systems |
| Control board menu | Add the remote through a display-based menu | Advanced or commercial controllers |
| Existing remote cloning or enrolment | Use a current working remote to authorise a new one | Selected compatible systems |
| DIP switch matching | Match physical switch positions inside the remote | Older fixed-code systems |
| Installer programming | Technician adds the remote through specialised settings | Managed, secure or complex systems |
How to Reprogram a Gate Remote Control
Reprogramming may be needed if:
- The remote was deleted from memory
- The battery was replaced but the remote is no longer responding
- You bought a replacement remote
- The gate receiver was replaced
- The system memory was reset
- A previous user’s remote access needs to be removed
In many cases, reprogramming a gate remote control is the same as programming a new remote. You simply place the receiver into learning mode and store the remote again.
However, if the receiver’s memory has been cleared, all previously authorised remotes may stop working. They will need to be re-added one by one. Some receiver systems support erasing a single transmitter, while others clear the whole remote memory at once, so care is required before holding down reset or delete buttons.
How to Duplicate a Gate Remote Control
Many people use the phrase how to duplicate gate remote control when they want a spare remote. In practice, there are two different ways this can happen:
1. Adding a New Remote to the Receiver
This is the safest and most reliable approach. The new remote is programmed directly into the gate receiver as an authorised transmitter. It does not necessarily copy the old remote; instead, it becomes another recognised remote in the system.
2. Copying an Existing Remote
Some older fixed-code remotes can be duplicated by matching DIP switch positions or by using a compatible cloning remote. However, many newer systems use rolling code technology, meaning the code changes each time the remote is pressed. These remotes usually cannot be copied in the same simple way as old fixed-code models and must be properly added to the receiver memory instead.
| Remote Type | Can It Be Easily Duplicated? | Common Method |
|---|---|---|
| Fixed-code DIP switch remote | Often yes | Match DIP switches or compatible copier |
| Fixed-code electronic remote | Sometimes | Depends on remote model |
| Rolling code remote | Usually not by simple copying | Program into the receiver |
| Encrypted or managed access remote | Generally no | Installer or access manager required |
Rolling Code vs Fixed Code Gate Remotes
Understanding the difference between rolling code and fixed code remotes helps explain why some remotes can be copied and others cannot.
Fixed Code Remotes
A fixed-code remote sends the same code every time the button is pressed. Older systems often use this approach, sometimes with visible DIP switches inside the remote casing. Because the code stays the same, compatible remotes may be easier to duplicate.
Rolling Code Remotes
A rolling code remote changes its transmitted code each time it is used. The receiver and transmitter stay synchronised using an internal algorithm. This is more secure and helps protect against basic signal copying. Many modern gate automation brands use rolling code transmitters.
| Feature | Fixed Code | Rolling Code |
|---|---|---|
| Signal behaviour | Same code each time | Code changes after each use |
| Security level | Lower | Higher |
| Ease of duplication | Easier | More restricted |
| Typical age | Common in older systems | Common in newer systems |
| Programming method | DIP switches or receiver learning | Receiver learning or authorised enrolment |
How to Tell If Your Gate Remote Has Programmed Correctly
After programming, test it properly rather than assuming it worked.
Check for the following:
- The gate opens or closes when the button is pressed
- The gate responds from a normal operating distance
- The correct button triggers the correct function
- The remote works consistently, not only once
- The receiver LED reacts when the remote is pressed, if visible
If the gate only works at very short range, the remote may be programmed correctly but have a weak battery, antenna issue, signal interference or receiver range problem.
Why a Gate Remote May Not Program
It is common for a remote not to pair on the first attempt. The table below outlines frequent causes.
| Problem | Possible Cause | What to Check |
|---|---|---|
| No LED on remote | Flat or incorrect battery | Replace battery and confirm polarity |
| Receiver does not enter learn mode | Wrong button or control board issue | Check labels and gate manual |
| Remote not accepted | Incompatible frequency or coding | Confirm model compatibility |
| Gate works only close up | Weak battery or antenna problem | Replace battery and inspect antenna |
| Old remote works, new one does not | Wrong remote type | Compare receiver and transmitter details |
| Remote LED flashes but gate does nothing | Remote not stored in receiver memory | Repeat programming process |
| Gate triggers wrong function | Programmed to wrong channel | Re-add to correct channel |
| No extra remotes can be added | Receiver memory may be full | Delete unused remotes or consult installer |
Mistakes to Avoid When Programming a Gate Remote
Holding the Wrong Button for Too Long
Some receivers use a short press to add a remote but a long press to erase memory. Holding a button down without knowing its function may remove existing remotes from the system.
Buying a Remote Based Only on Appearance
Two remotes can look identical but use different frequencies or coding systems. Always match the remote to the receiver or existing authorised remote specifications.
Assuming Every Remote Can Be Cloned
Rolling code remotes are not usually duplicated by simple copying. They often need to be enrolled into the receiver memory.
Programming Beside Interference
Metal enclosures, nearby electrical noise, damaged antenna wiring or low battery voltage can affect programming and testing.
Not Testing Every Button
A remote may have multiple buttons, but only one may be programmed. Test each required gate function after setup.
Can You Program a Gate Remote Without the Original?
Yes, in many cases you can program a new gate remote without the original, as long as you have access to the receiver or gate control board and the new remote is compatible.
If you do not have an existing remote, the standard method is usually:
- Access the control box.
- Find the receiver.
- Enter learn mode.
- Press the selected button on the replacement remote.
- Test the system.
For strata properties, commercial sites or shared access gates, remote programming may be managed by a building manager, body corporate, facilities manager or gate technician rather than by individual users.
Can You Reprogram a Lost Gate Remote?
If a remote is lost, the safest approach is not only to add a new one but also to remove the lost remote from the receiver memory where possible. The ability to delete one specific remote depends on the receiver. Some systems allow individual transmitter deletion, while others require the full memory to be erased and all valid remotes to be added again.
For properties where security matters, this step is important. A lost remote that remains authorised could still open the gate if someone finds it.
When to Call a Gate Technician
You may need professional help if:
- You cannot identify the receiver or remote type
- The gate control box is difficult or unsafe to access
- The system belongs to a strata or commercial property
- The receiver memory appears full
- Existing remotes have stopped working after programming
- You need to delete lost remotes securely
- The gate motor has an electrical fault rather than a remote issue
- The system uses advanced rolling code, encrypted access or managed access control
A technician can confirm compatibility, add new transmitters, clear unused access devices, check the receiver, inspect antenna performance and ensure the gate responds correctly.
Frequently Asked Questions
How do I program an auto gate remote control?
Usually, you locate the receiver or gate control board, press the Learn, Radio or Code button, then press the button on the new remote until the receiver confirms it has stored the signal. The exact process depends on the gate automation brand and receiver model.
How do I program an electric gate remote control?
Electric gate remotes are generally programmed through the receiver connected to the gate controller. Some systems use a simple learn button, while others use a display menu or authorised wireless enrolment process.
Can I program a gate remote myself?
Yes, many residential gate remotes can be programmed by the homeowner if they have the correct compatible remote and can safely access the gate receiver. More complex systems may require a gate technician.
How do I reprogram a gate remote control?
Reprogramming normally means pairing the remote with the receiver again. Put the receiver into programming mode, press the selected remote button and wait for confirmation. If receiver memory has been cleared, all remotes may need to be programmed again.
How do I duplicate a gate remote control?
For modern rolling code systems, the best method is usually to add a new authorised remote to the receiver. Older fixed-code remotes may sometimes be copied more directly, but compatibility must be confirmed.
Can I copy a rolling code gate remote?
Rolling code remotes are designed to be more secure and generally cannot be duplicated by simple code copying. A replacement remote typically needs to be registered to the gate receiver.
Why will my new gate remote not program?
The most common reasons are an incompatible remote, a flat battery, incorrect programming sequence, wrong receiver channel, full receiver memory or an issue with the gate’s radio receiver.
Final Thoughts
Learning how to program a gate remote control is useful when you need a spare transmitter, replace a lost remote or set up access for a new user. Although the exact steps vary between automatic gate brands, the core principle is the same: the remote must be recognised and stored by the receiver before it can operate the gate.
For many homeowners, programming an auto gate remote control is a straightforward task using the receiver’s learn function. However, with rolling code technology, multiple gate channels and different receiver types, compatibility matters. When in doubt, check the remote model, receiver type and control board instructions before attempting to program, reprogram or duplicate a gate remote control.
