Double Boom Gate: Complete Guide
A double boom gate is a practical access control solution designed for wider driveways, dual-lane entries, large car parks, commercial properties, industrial sites, residential complexes and areas where vehicle movement needs to be managed safely and efficiently. Instead of relying on one long barrier arm, a double boom gate system uses two boom arms, usually installed on opposite sides of the driveway or across two separate traffic lanes. This design can improve reliability, reduce arm length, support faster operation and provide better control over vehicles entering and exiting a site.
Across Australia, double boom gates are commonly used in shopping centres, apartment buildings, warehouses, schools, logistics yards, hospitals, private roads, government facilities and commercial car parks. They are especially useful where the entrance is too wide for a standard single boom gate or where separate entry and exit lanes need to be controlled at the same access point.
For property owners, facility managers and developers, choosing the right double boom gate system is not just about blocking a driveway. It is about traffic flow, safety, durability, automation, security, user convenience and long-term maintenance. A well-designed double boom gate can help reduce unauthorised access, improve site presentation, protect parking spaces, reduce congestion and create a smoother arrival experience for visitors, residents, staff and contractors.

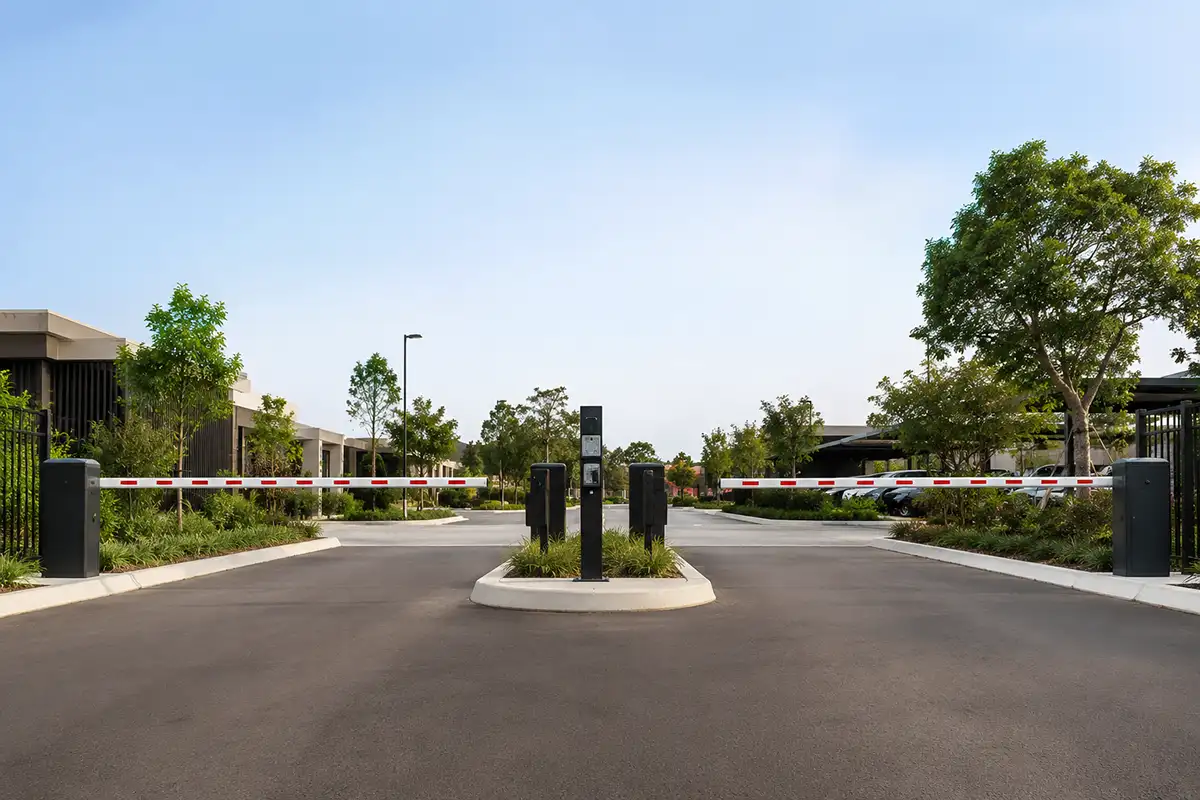

What Is a Double Boom Gate?
A double boom gate is an access control system that uses two barrier arms instead of one. These arms can operate together or independently, depending on the design of the driveway and the traffic management requirements.
In many installations, the two boom arms are positioned opposite each other and close towards the centre of the driveway. This is often used for wide entrances where one very long boom arm would be too heavy, too slow or less stable in windy conditions. In other cases, a double boom gate system may refer to two separate boom gates installed side by side, usually for one entry lane and one exit lane.
The main purpose of a double boom gate is to control vehicle access. It allows authorised vehicles to pass while preventing or discouraging unauthorised entry. When connected to an access control system, it can work with remote controls, swipe cards, number plate recognition, intercoms, keypads, ticket machines, parking management systems or mobile phone access.
Common Types of Double Boom Gate Systems
There are several ways a double boom gate can be designed. The right option depends on the driveway width, site layout, traffic volume and security requirements.
| Type of Double Boom Gate | Best Suited For | Key Benefit |
|---|---|---|
| Opposing double boom gates | Wide driveways and shared access roads | Covers a large opening without one oversized arm |
| Entry and exit boom gates | Car parks, apartment complexes and commercial sites | Separates incoming and outgoing traffic |
| Dual-lane boom gates | High-traffic properties | Allows better traffic flow during peak periods |
| Automatic double boom gates | Most modern commercial and residential sites | Convenient and efficient daily operation |
| Solar double boom gates | Remote or low-power locations | Can operate where mains power is difficult |
| Heavy-duty double boom gates | Industrial and logistics sites | Built for frequent use and harsh conditions |
Why Use a Double Boom Gate Instead of a Single Boom Gate?
A standard single boom gate is suitable for many driveways, but it is not always the best solution for wider openings or busy sites. A double boom gate can offer several practical advantages.
For a wide driveway, using one very long boom arm may create issues with weight, speed, stability and wind loading. Long arms can place extra stress on the motor and cabinet. They may also require additional support accessories, such as a pendulum support or fixed rest. By using two shorter arms, the system can operate more smoothly and place less strain on each motor.
A double boom gate can also improve traffic control. If a property has separate entry and exit lanes, each lane can have its own boom gate. This helps reduce confusion, supports better vehicle movement and allows different access rules for each direction.
For example, an apartment building may allow residents to enter using a remote or number plate recognition, while visitors exit through a separate controlled lane. A commercial car park may use ticket machines on entry and payment validation on exit. A warehouse may need different access permissions for staff vehicles, delivery trucks and contractors.
Where Double Boom Gates Are Commonly Used
Double boom gates are suitable for many Australian property types. They are particularly valuable where there is regular vehicle traffic, shared access or a need to control parking.
Common applications include:
Residential apartment buildings often use double boom gates to manage basement car park entry and exit. This helps prevent unauthorised parking and improves resident security.
Commercial office buildings use them to separate staff parking, visitor parking and loading areas. Access can be managed through cards, fobs, intercoms or number plate recognition.
Industrial sites and warehouses rely on heavy-duty boom gates to manage trucks, vans and staff vehicles. In these environments, durability and fast cycle times are important.
Shopping centres and public car parks often use double boom gates as part of a ticketing or paid parking system.
Schools and childcare centres may use double boom gates to manage staff parking, visitor access and vehicle movement around pick-up and drop-off areas.
Hospitals and medical centres use them to control staff parking, ambulance zones, visitor parking and restricted service areas.
Strata properties use double boom gates to reduce parking disputes and protect private parking spaces.
Main Components of a Double Boom Gate System
A double boom gate system includes several important components. The quality and compatibility of these parts affect the performance and lifespan of the system.
| Component | Purpose |
|---|---|
| Boom gate cabinet | Houses the motor, gearbox and control electronics |
| Boom arm | The visible barrier arm that blocks vehicle access |
| Motor and gearbox | Opens and closes the boom arm |
| Control board | Manages operation, signals and accessories |
| Safety sensors | Detect vehicles or obstacles in the gate path |
| Access control device | Allows authorised users to open the gate |
| Loop detector | Detects vehicles through sensors installed in the driveway |
| Receiver | Receives signals from remotes or wireless devices |
| Warning lights | Improves visibility during operation |
| Battery backup | Allows operation during power failure |
| Manual release | Allows manual operation during emergency or maintenance |
In a double boom gate system, these components must work together correctly. If the two boom arms are designed to open and close at the same time, the system may need synchronisation between both motors. If they operate independently, each side may require its own control setup.
Automatic Double Boom Gates
Most double boom gates installed today are automatic. Automatic double boom gates offer convenience, security and efficiency, especially in busy properties where manual operation would be impractical.
An automatic system can be activated in several ways. A resident may use a remote control. A staff member may use a swipe card. A visitor may call through an intercom. A vehicle may be detected by number plate recognition. A paid parking customer may use a ticket or QR code. In some cases, the system may be connected to a building management system or parking management platform.
Automatic double boom gates are ideal where reliable daily use is required. However, they must be properly specified. A low-duty system may not be suitable for a high-traffic commercial car park. Similarly, a basic residential boom gate may not perform well in an industrial yard with large vehicles and frequent movement.

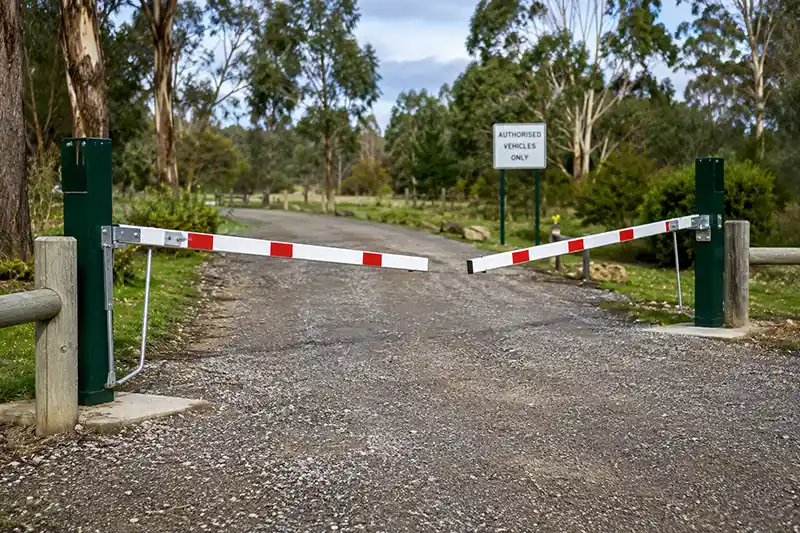

Manual Double Boom Gates
Manual double boom gates are simpler systems that do not rely on motors or electronic access control. They are usually opened and closed by hand. They may be locked in place using a padlock, latch or locking post.
Manual double boom gates are often used in low-traffic areas such as private rural roads, farm access points, service yards, storage areas and temporary restricted zones. They can be a cost-effective option where automation is not required.
The main advantage of a manual double boom gate is simplicity. There are fewer mechanical and electrical components to maintain. However, manual operation can be inconvenient if the gate needs to be used often, especially in bad weather or high-traffic situations.
Double Boom Gates for Wide Driveways
One of the main reasons to choose a double boom gate is to manage a wide driveway. Many commercial, industrial and strata properties have wide access points that cannot be practically covered by one standard arm.
Using two boom arms that meet in the middle can be a better solution. Each arm is shorter, lighter and easier to operate. This can improve the speed and reliability of the system. It can also reduce the risk of the arm flexing or moving too much in windy conditions.
Wide entrances may also need additional safety planning. The installer should consider vehicle turning paths, pedestrian crossings, clearance heights, nearby walls, kerbs, landscaping, lighting and visibility. For large vehicles, the gate layout must allow enough turning space so trucks and vans do not clip the boom arm or block traffic while waiting.

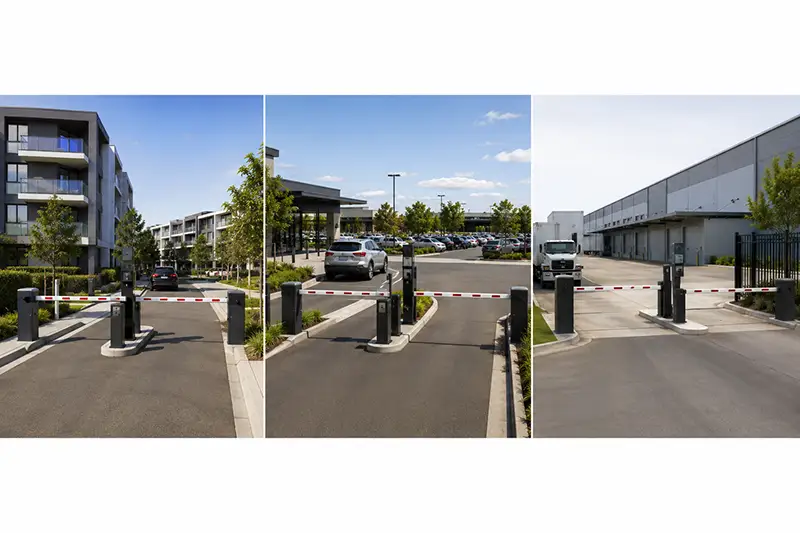

Double Boom Gates for Entry and Exit Lanes
Another common use is a side-by-side entry and exit system. This is often seen in car parks, apartment buildings and commercial properties. One boom gate controls vehicles entering the site, while the other controls vehicles leaving.
This design helps create an organised traffic flow. It reduces the risk of two vehicles trying to use the same lane in opposite directions. It also allows each lane to have different access requirements.
For example, the entry lane may include an intercom, keypad or card reader. The exit lane may include a free-exit loop detector that automatically opens the gate when a vehicle leaves. In a paid parking system, the exit lane may include a ticket validator or payment terminal.
A well-planned entry and exit system can reduce congestion, especially during peak times. This is important for apartment buildings in the morning, office car parks during business hours and commercial sites with regular deliveries.
Safety Features for Double Boom Gates
Safety is a major consideration for any boom gate installation. A double boom gate must be designed to reduce the risk of contact with vehicles, pedestrians, cyclists and property.
Important safety features may include:
| Safety Feature | Why It Matters |
|---|---|
| Safety loops | Helps prevent the arm from closing on a vehicle |
| Photoelectric beams | Detects objects or people in the gate path |
| Rubber arm edging | Helps reduce impact risk |
| Warning lights | Alerts drivers that the gate is moving |
| Reflective arm strips | Improves visibility at night |
| Slow-down function | Reduces harsh movement at the end of travel |
| Manual release | Allows emergency operation |
| Signage | Helps users understand access rules |
| Audible warning | Useful in high-risk or low-visibility areas |
The best safety setup depends on the site. A quiet private driveway may need fewer accessories than a busy commercial car park. However, any automated boom gate should be installed with proper safety devices and adjusted correctly by a qualified technician.
Pedestrian safety is especially important. Boom gates are designed for vehicles, not pedestrian access. Where people need to walk through an entry point, a separate pedestrian pathway or gate should be provided. This helps prevent people from walking under or around moving boom arms.
Access Control Options
A double boom gate becomes much more useful when connected to the right access control system. The best option depends on who uses the property and how access needs to be managed.
| Access Control Option | Suitable For | Benefit |
|---|---|---|
| Remote controls | Homes, small strata sites and staff parking | Simple and convenient |
| Swipe cards or fobs | Apartments and offices | Easy to issue and cancel |
| Keypads | Low to medium traffic sites | No physical remote required |
| Intercom systems | Visitor access | Allows communication before entry |
| Mobile phone access | Modern residential and commercial sites | Flexible and easy to manage |
| Number plate recognition | Premium car parks and secure sites | Hands-free access |
| Ticket systems | Paid parking and public car parks | Controls casual parking |
| Loop detectors | Exit lanes and automation triggers | Detects vehicles automatically |
For strata and commercial properties, access control should be easy to manage. Lost remotes, tenant changes and staff turnover can create security risks if access devices are not properly controlled. Digital systems can make it easier to add, remove or track users.
Power Supply and Battery Backup
Double boom gates usually require a reliable power supply. Most automatic systems are connected to mains power, but they may also include battery backup. Battery backup is useful during power outages because it allows the gate to keep operating for a limited number of cycles.
For some sites, solar power may also be an option. A solar double boom gate can be useful where running electrical cabling is expensive or difficult. This may apply to rural properties, temporary access points, remote industrial yards or large sites with access points far from existing power.
However, solar systems need to be designed properly. The solar panel size, battery capacity, traffic volume, motor power and site shading must all be considered. A poorly designed solar setup may fail during cloudy weather or heavy use.
Choosing the Right Double Boom Gate
Selecting the right double boom gate requires more than measuring the driveway width. A proper assessment should consider the site conditions, traffic volume, access requirements and future maintenance.
Key factors include:
| Factor | What to Consider |
|---|---|
| Driveway width | Determines boom arm length and layout |
| Traffic volume | Affects motor duty rating and durability |
| Vehicle type | Cars, vans, trucks and emergency vehicles may need different clearances |
| Opening speed | Important for busy car parks and commercial sites |
| Wind exposure | Longer arms may need stronger support |
| Access method | Remotes, cards, intercoms, number plate recognition or ticketing |
| Safety requirements | Sensors, loops, beams, signage and visibility |
| Power supply | Mains power, solar power or battery backup |
| Site layout | Kerbs, slopes, walls, ramps and turning areas |
| Maintenance access | Technicians need safe access to service the system |
For high-use sites, it is usually better to invest in a commercial-grade or heavy-duty system rather than choosing the cheapest option. A low-cost boom gate may seem attractive at first, but frequent breakdowns, slow operation and poor reliability can become more expensive over time.
Double Boom Gate Installation Considerations
The installation quality is just as important as the product itself. Even a good boom gate can perform poorly if it is installed incorrectly.
The boom gate cabinets need to be fixed to solid concrete footings. The arms must be aligned properly, especially when two arms meet in the centre. If the arms do not line up, the system may look poor and may not block the driveway effectively.
Electrical cabling should be installed safely and protected from damage. Control wiring for access devices, loops, intercoms and safety beams must be planned before the final installation. For new developments, it is best to coordinate the boom gate system early so conduits and power supplies can be allowed for before concrete, paving or landscaping is finished.
For existing properties, a site inspection is important. The installer may need to check available power, driveway levels, drainage, nearby structures, underground services and the best location for control devices.
Maintenance Requirements
A double boom gate system should be maintained regularly to keep it safe and reliable. This is especially important for commercial, strata and industrial properties where the gate may operate many times per day.
Maintenance may include checking the motor, gearbox, springs, arm brackets, safety sensors, loop detectors, control board, access devices and backup battery. The technician may also test opening and closing speeds, alignment, manual release operation and safety response.
| Maintenance Item | Recommended Check |
|---|---|
| Boom arm alignment | Make sure both arms sit correctly |
| Fixings and brackets | Check for loose bolts or damage |
| Springs and balance | Ensure smooth operation |
| Motor and gearbox | Listen for unusual noise or strain |
| Safety sensors | Test detection and response |
| Loop detectors | Confirm vehicles are detected correctly |
| Access devices | Test remotes, cards, keypads or intercoms |
| Battery backup | Check condition and performance |
| Warning lights | Confirm they operate correctly |
| Manual release | Make sure it works in an emergency |
For busy sites, scheduled servicing can reduce breakdowns and extend the life of the system. It can also help identify minor issues before they become expensive repairs.
Common Problems With Double Boom Gates
Like any mechanical and electrical system, double boom gates can develop problems over time. Some common issues include slow operation, arm misalignment, remote control faults, sensor problems, damaged boom arms, motor strain, power supply issues and control board faults.
A common issue with double boom gates is poor synchronisation. If two arms are designed to open and close together but one side moves faster than the other, the system may need adjustment. This can be caused by motor settings, control board issues, spring tension or mechanical wear.
Another common problem is vehicle impact. Boom arms are often hit by drivers who follow too closely, misjudge the timing or try to enter without authorisation. Using proper signage, safety loops, visibility strips and controlled access settings can reduce this risk.
Benefits of a Double Boom Gate
A well-designed double boom gate can provide several benefits for Australian properties.
It improves access control by helping prevent unauthorised vehicles from entering private or restricted areas. This is valuable for residential complexes, commercial car parks and industrial sites.
It improves traffic flow by separating entry and exit movements or allowing wide openings to be controlled more effectively.
It can improve safety by providing a clear vehicle control point and reducing random vehicle movement through a site.
It can support better parking management, especially where spaces are limited or reserved for residents, staff, tenants or customers.
It can improve the presentation of a property by creating a professional and organised entrance.
It can also reduce long-term operational stress when the right system is selected for the traffic volume and site conditions.
Double Boom Gate Cost Factors
The cost of a double boom gate can vary significantly depending on the system type, arm length, automation level and access control requirements. A basic manual system will generally cost less than a fully automated commercial system with number plate recognition, intercom integration, loop detectors and battery backup.
Main cost factors include the number of boom gate motors, boom arm length, cabinet quality, duty rating, access control devices, safety sensors, civil works, electrical works, conduit requirements, traffic management, solar equipment and ongoing maintenance.
For existing sites, additional costs may apply if trenching, concrete footings, power upgrades or driveway modifications are required. For new developments, costs can often be managed better if the boom gate system is planned early.
Double Boom Gate vs Sliding Gate
Some property owners compare double boom gates with sliding gates. Both options can control vehicle access, but they serve different purposes.
| Feature | Double Boom Gate | Sliding Gate |
|---|---|---|
| Opening speed | Usually faster | Usually slower |
| Security level | Controls vehicles, but not fully enclosed | Provides stronger physical security |
| Best use | Car parks, access points and traffic control | Perimeter security and private driveways |
| Space requirement | Needs vertical arm movement | Needs side space for gate travel |
| Pedestrian control | Not ideal for pedestrians | Can be combined with pedestrian gate |
| Visual impact | Light and open | More solid and secure |
| Cost range | Often practical for traffic control | Can be higher depending on gate size |
A boom gate is usually better for managing traffic where visibility and fast access are important. A sliding gate is usually better where full perimeter security is required. In some sites, both may be used together.
Final Thoughts
A double boom gate is a smart and practical solution for properties that need controlled vehicle access across wide driveways, dual lanes or high-traffic entry points. It offers flexibility, convenience and improved traffic management for residential, commercial, industrial and public car park environments.
The best system depends on the site layout, traffic volume, access requirements, power supply, safety needs and long-term maintenance expectations. For a simple private road, a manual double boom gate may be enough. For a busy apartment building, office car park or industrial facility, an automatic double boom gate with reliable access control and safety devices is usually the better option.
When properly designed and installed, a double boom gate can make a property safer, more organised and easier to manage. It can reduce unauthorised access, improve vehicle flow, protect parking spaces and create a professional first impression for residents, staff, visitors and customers.
For Australian conditions, durability and correct installation are essential. The system should be suitable for local weather, traffic demands and daily use. Choosing the right equipment from the beginning can help avoid breakdowns, reduce maintenance costs and provide smooth operation for years to come.
