Concrete Footing for Sliding Gate

A sliding gate is only as strong, smooth, and reliable as the foundation it sits on. Whether the gate is installed for a residential driveway, commercial property, warehouse, industrial site, rural entrance, or apartment complex, the concrete footing plays a major role in the long-term performance of the whole system. A well-built concrete footing for a sliding gate helps keep the gate track straight, supports the gate motor, prevents movement over time, and reduces the risk of sagging, cracking, jamming, or noisy operation.

Many people focus on the gate frame, motor, remote control system, or access control features, but the footing is just as important. If the footing is too shallow, too narrow, poorly reinforced, or not properly levelled, the sliding gate may start to scrape, shake, derail, or put pressure on the motor. In Australia, where properties can face hot summers, heavy rain, reactive clay soils, sloping driveways, coastal corrosion, and regular vehicle traffic, the footing must be carefully planned before installation begins.

A concrete footing for a sliding gate is not simply a strip of concrete under the track. It needs to be designed around the weight of the gate, the length of travel, the type of soil, the driveway surface, drainage requirements, post locations, motor pad position, and whether the gate is manual or automatic. Getting this right at the beginning can save a lot of money and maintenance later.

What Is a Concrete Footing for a Sliding Gate?

A concrete footing for a sliding gate is the reinforced concrete base that supports the gate track, guide posts, receiver posts, motor pad, and sometimes the structural support for the gate system. For a track sliding gate, the footing usually runs along the full opening and extends past the opening to allow the gate to slide fully open. For a cantilever sliding gate, the footing is usually concentrated around the support posts and may need to be deeper and stronger because the gate is suspended without a ground track.

The main purpose of the footing is to provide a stable, level, and durable base. It must resist movement from vehicle loads, soil movement, moisture changes, gate vibration, motor force, and daily operation. A poor footing can cause problems even if the gate itself is high quality.

For automatic sliding gates, the footing also needs to provide a secure area for the gate motor. The motor must be installed on a solid, level concrete pad so the pinion gear aligns properly with the gate rack. Even a small movement in the footing can affect the motor alignment and cause the gate to operate roughly.

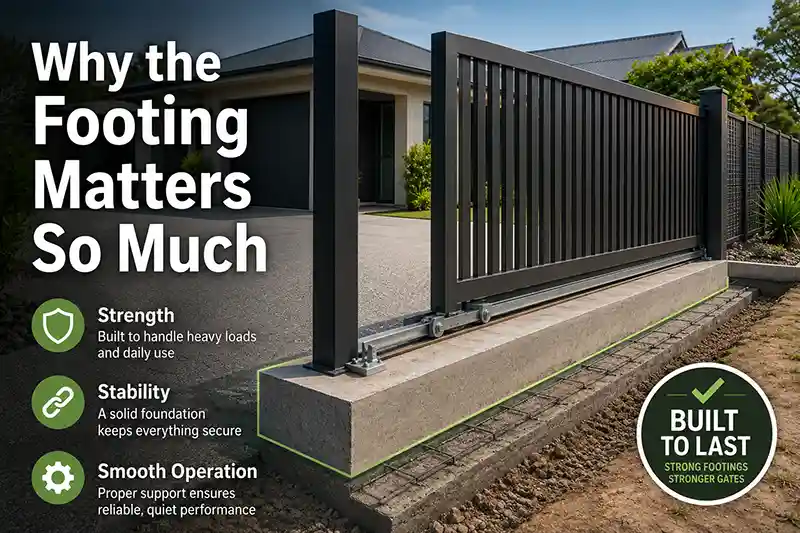

Why the Footing Matters So Much

A sliding gate moves horizontally, which means the track and base must remain straight and level. Unlike a swing gate, where the load is mainly carried by hinges and gate posts, a track sliding gate depends heavily on the track and concrete base below it. If the footing moves, the whole gate movement can be affected.

A good concrete footing helps with:

Function	Why It Matters
Track support	Keeps the gate running smoothly along a straight line
Load distribution	Spreads the gate and vehicle loads across a stable base
Motor alignment	Helps the motor gear and gate rack stay correctly positioned
Durability	Reduces cracking, sinking, and movement over time
Safety	Helps prevent derailment, scraping, and unstable gate movement
Drainage control	Reduces water pooling around the track and motor
Long-term maintenance	Minimises adjustment, repair, and re-levelling work

When the footing is done properly, the gate feels smooth, quiet, and strong. When it is done poorly, even a new gate can feel cheap, noisy, or unreliable.

Common Types of Sliding Gate Footings

There are a few common footing arrangements used for sliding gates. The right option depends on the gate design, site conditions, and whether the gate is track-based or cantilevered.

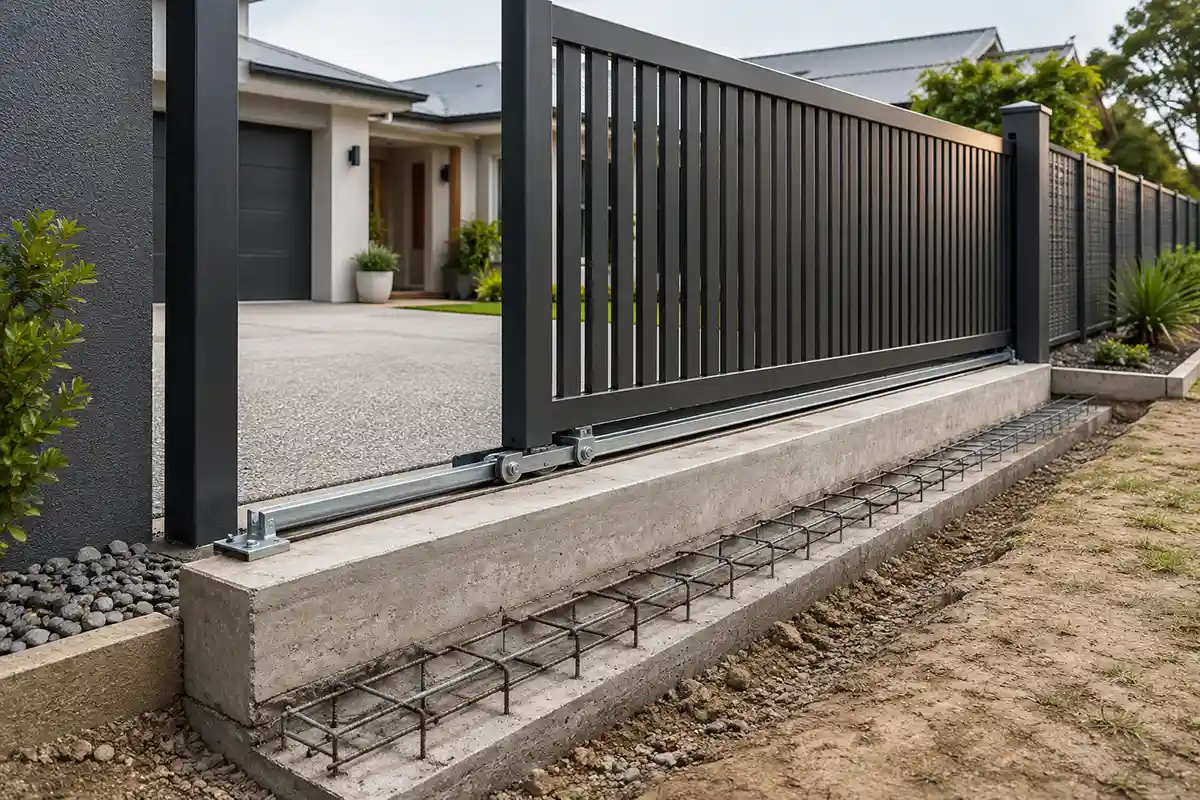

Track Sliding Gate Footing

A track sliding gate runs on wheels along a steel track fixed to concrete. This is one of the most common systems for residential driveways and many commercial properties. The footing usually needs to cover the full gate travel area, including the driveway opening and the run-back area where the gate slides when it opens.

The concrete must be strong enough to carry the gate wheels and any vehicle loads if cars, utes, trucks, or delivery vehicles cross over the track. The track must be fixed securely and installed straight. Any dip, bump, or misalignment in the footing can affect the gate movement.

Cantilever Sliding Gate Footing

A cantilever sliding gate does not use a ground track across the driveway. Instead, the gate is supported by roller posts or a structural support system on one side of the opening. This is useful for sites where a ground track would be difficult to maintain, such as gravel driveways, sloped entries, industrial yards, or areas with heavy debris.

Because the gate is suspended, the support post footings are very important. The footing must resist the weight and leverage of the gate. Cantilever gates often require deeper, wider, and more heavily reinforced concrete footings than standard track sliding gates.

Motor Pad Footing

For automatic sliding gates, the motor needs its own concrete base or an extended part of the main footing. The motor pad must be flat, strong, and positioned correctly beside the gate track. If the pad is too low, water may affect the motor. If it is too high or not aligned, the motor gear may not engage properly with the gate rack.

The motor pad should allow enough space for the motor, electrical conduit, access for servicing, and future adjustment.

Post Footings

Sliding gates also require guide posts, end posts, receiver posts, and sometimes safety posts. These posts are usually set into concrete footings. The size of the footing depends on the height of the gate, wind exposure, soil condition, and the amount of force applied during gate movement.

For automatic gates, post locations are especially important because safety sensors, intercoms, keypads, guide brackets, and stop plates may all need to be fixed to stable supports.

Recommended Concrete Footing Size for Sliding Gates

There is no one-size-fits-all footing size for every sliding gate. The correct footing depends on gate length, gate weight, soil type, expected traffic, slope, and engineering requirements. However, for many residential sliding gates, a reinforced concrete strip footing is often used under the track area.

As a general guide, a standard residential sliding gate footing may be around 300 mm to 450 mm wide and 300 mm to 600 mm deep, depending on the site. Heavier gates, wider openings, poor soil, commercial use, or vehicle loading may require larger and deeper footings.

For commercial and industrial gates, the footing should be designed more carefully. A large steel sliding gate used many times a day by trucks or forklifts will place far more stress on the footing than a small residential aluminium gate used a few times per day.

Gate Type	Typical Footing Consideration
Light residential sliding gate	Moderate strip footing with reinforcement
Heavy steel residential gate	Wider and deeper footing with stronger reinforcement
Automatic sliding gate	Track footing plus stable motor pad
Commercial sliding gate	Heavy-duty footing designed for frequent use
Industrial sliding gate	Engineered footing recommended
Cantilever sliding gate	Deep post footings with strong reinforcement
Sloping driveway gate	Careful levels, drainage, and track alignment required

These are general considerations only. For large gates, heavy gates, complex sites, or poor soil conditions, it is best to involve a qualified gate installer, builder, or structural engineer.

Soil Conditions and Site Preparation

Soil condition is one of the most important factors in footing performance. In many parts of Australia, soil can expand and shrink depending on moisture levels. Reactive clay soils are especially common in some areas and can cause concrete movement if the footing is not designed correctly.

Before pouring concrete, the ground must be properly prepared. Soft soil, loose fill, tree roots, organic material, and unstable ground should be removed. The base should be compacted so the concrete has a firm platform. If the footing is poured over poorly compacted soil, it may crack or sink over time.

Good site preparation usually includes:

• Clearing the gate travel path
• Removing loose or soft material
• Checking soil stability
• Compacting the base
• Setting correct levels
• Planning drainage
• Installing formwork
• Placing reinforcement
• Allowing for conduit and services

Rushing this stage is one of the most common causes of future gate problems.

Reinforcement for Sliding Gate Footings

Concrete is strong in compression but weak in tension. Reinforcement helps the footing resist cracking and movement. Steel reinforcement mesh or reinforcing bars are commonly used inside the concrete footing.

For a sliding gate track footing, reinforcement helps keep the concrete together when the ground moves, vehicles cross the track, or the gate loads transfer through the wheels. For post footings, reinforcement can help improve structural stability, especially for taller gates or cantilever systems.

The reinforcement should be positioned correctly inside the concrete, not sitting directly on the ground. It should have adequate concrete cover to reduce corrosion risk. In coastal areas, corrosion protection is especially important because salt air can affect exposed steel and metal components.

A properly reinforced footing will usually last longer and perform better than plain concrete, especially for automatic gates or heavier gate systems.

Concrete Strength and Finish

The concrete used for sliding gate footings should be suitable for outdoor use and vehicle traffic. The required strength depends on the application, but many driveway and gate footings use concrete mixes suitable for structural and traffic conditions. For heavy-duty applications, higher strength concrete may be required.

The finish of the concrete is also important. The surface must be level enough for the track to sit straight, but it should also allow water to drain away. A perfectly flat surface with poor drainage can cause water to pool around the track or motor, increasing corrosion and electrical risk.

For track gates, the track should be installed in a way that allows smooth rolling without creating a trip hazard or water trap. The concrete around the track should be shaped carefully so water and debris do not constantly collect along the gate path.

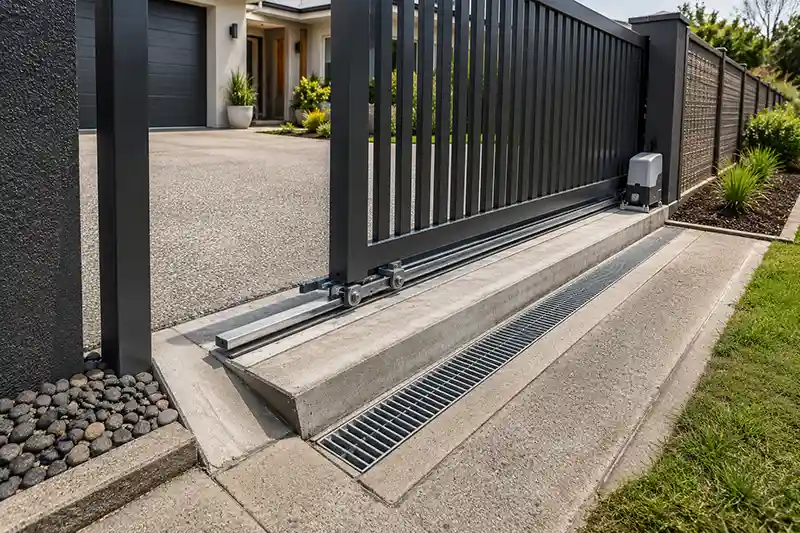

Drainage Around the Sliding Gate Footing

Drainage is often overlooked, but it is very important. Sliding gate tracks can collect leaves, dirt, stones, mud, and water. If water sits around the track, it may cause corrosion, wheel issues, motor problems, and concrete deterioration over time.

Good drainage planning may include:

• Slight falls away from the motor
• Avoiding low spots along the track
• Keeping water away from electrical components
• Installing drains near the driveway entrance if needed
• Ensuring landscaping does not direct water towards the footing
• Avoiding soil build-up beside the track

For automatic gates, the motor should not sit in a low area where stormwater can pool. The motor pad should be raised enough to reduce water exposure while still maintaining correct alignment with the gate rack.

Track Alignment and Level

Track alignment is one of the most critical parts of a sliding gate installation. The concrete footing must allow the track to be fixed straight, level, and secure. If the track is out of alignment, the gate may become hard to open, noisy, or unreliable.

A sliding gate track should be installed with careful attention to:

• Straightness across the full travel length
• Correct height above the driveway surface
• Smooth transition across the driveway
• Secure fixing into the concrete
• Adequate support under the full track
• Clearance from debris and water
• Correct relationship with gate wheels

Even small errors can become bigger problems over time. A slight dip in the track may cause the gate to roll too fast in one direction or put extra load on the motor. A raised section may cause the gate to bump, shake, or stop.

Footing for Automatic Sliding Gates

Automatic sliding gates need more careful footing preparation than manual gates because the motor depends on precise alignment. The gate motor uses a gear to drive a rack attached to the gate. If the motor footing moves or the track level changes, the gear and rack may not mesh properly.

This can cause:

• Grinding noise
• Gate stopping halfway
• Motor overload
• Rack damage
• Premature gear wear
• Gate not closing fully
• Intermittent faults

A proper automatic sliding gate footing should include a stable motor pad, conduit for power and control cables, suitable space for the motor housing, drainage away from electrical components, and enough concrete strength to resist vibration.

The motor should also be accessible for servicing. It should not be squeezed against a wall, fence, garden bed, or post where a technician cannot easily open the cover or make adjustments.

Conduit and Electrical Planning

For automatic sliding gates, electrical planning should be done before the concrete is poured. Power cables, low-voltage control cables, intercom wiring, keypad cables, safety beam wiring, and access control cables may need to pass through conduits.

Installing conduit after the concrete is finished can be messy, expensive, and difficult. It may require cutting concrete or running exposed cables, which is not ideal.

Before pouring the footing, consider whether the gate system may include:

• Gate motor
• Safety beams
• Keypad
• Intercom
• Video intercom
• Loop detector
• Exit button
• Remote receiver
• Smart access system
• Solar power equipment
• Battery backup

Future upgrades should also be considered. Even if the gate is manual now, installing conduit during the footing stage can make future automation easier.

Sliding Gate Footing on a Sloping Driveway

Sloping driveways need extra care. A sliding gate needs a clear and consistent travel path. If the driveway slopes across the opening, the gate may need special design adjustments. For track gates, the track must be set so the gate can roll smoothly without scraping or running away due to gravity.

On a sloping site, the footing may need stepped levels, careful excavation, retaining edges, or custom gate fabrication. The gate frame may also need to follow the slope visually while still operating on a practical track line.

A poor footing on a sloping driveway can make the gate dangerous or unreliable. The gate may roll by itself, place extra strain on the motor, or fail to close properly. For significant slopes, professional design advice is strongly recommended.

Concrete Footing for Sliding Gate Posts

Sliding gate posts are not just decorative supports. They help guide, stop, and stabilise the gate. A guide post keeps the gate upright as it moves. A receiver post helps hold the gate when it is closed. End stops prevent the gate from rolling too far. For automatic gates, posts may also carry sensors, intercoms, keypads, and safety equipment.

Post footings must be deep and strong enough to resist movement. If a guide post moves even slightly, the gate may rub, lean, or derail. If the receiver post moves, the gate may not latch or close correctly.

For heavy gates, tall gates, or exposed sites, post footing size should not be guessed. Wind load, gate weight, and daily use all affect the required footing.

Concrete Footing for Heavy Sliding Gates

Heavy sliding gates require stronger footings. Steel gates, decorative gates, privacy gates, and commercial security gates can place substantial load on wheels, track, posts, and motors.

For heavy gates, the footing may need:

• Greater width
• Greater depth
• More reinforcement
• Higher strength concrete
• Engineered post footings
• Stronger track fixings
• Larger motor pad
• Better drainage
• More accurate levelling

Heavy gates also increase the importance of wheel quality and track quality. A strong footing will not fully solve problems if the wheels, track, or motor are undersized. The whole gate system must work together.

Common Mistakes When Building Sliding Gate Footings

Many sliding gate issues start with poor footing work. Some problems appear immediately, while others develop months or years later.

Common mistakes include:

• Making the footing too shallow
• Pouring concrete over soft or uncompacted ground
• Not using reinforcement
• Installing the track before the concrete is ready
• Poor track alignment
• No drainage planning
• Motor pad too small or too low
• No conduit for future automation
• Incorrect post locations
• Not allowing enough run-back space
• Ignoring driveway slope
• Using weak or poor-quality concrete
• Not checking gate clearance

One of the biggest mistakes is not allowing enough length for the gate to slide open. A sliding gate needs space beside the driveway opening equal to the gate length, plus some extra clearance. If the footing and track do not extend far enough, the gate will not fully open.

How Long Should Concrete Cure Before Installing a Sliding Gate?

Concrete needs time to gain strength. While it may look hard after a day or two, it continues curing over time. Installing a heavy gate or operating an automatic system too soon may affect the footing, fixings, or track alignment.

For many projects, light work may continue after a short period, but heavier loading should wait longer. The exact timing depends on concrete mix, weather, footing size, and site conditions. Hot weather, cold weather, and rain can all affect curing.

A gate installer should avoid rushing the installation. Letting the concrete cure properly helps reduce cracking and movement. For heavy gates or commercial systems, allowing adequate curing time is especially important.

Maintenance of Sliding Gate Footings and Tracks

Once the sliding gate is installed, the footing and track still need basic maintenance. Dirt, leaves, stones, and mud can collect around the track. If this debris is not removed, the gate wheels may wear faster and the motor may work harder.

Regular maintenance should include:

• Cleaning the track
• Checking for cracks in the concrete
• Removing weeds near the footing
• Keeping drainage clear
• Checking motor pad for water pooling
• Inspecting track fixings
• Checking post movement
• Watching for gate scraping or shaking

A small crack in concrete does not always mean the footing has failed, but movement, sinking, or widening cracks should be checked early. Fixing a small issue is usually cheaper than replacing a full gate footing later.

Cost Factors for Concrete Footing for Sliding Gates

The cost of a concrete footing for a sliding gate can vary widely depending on the project. A simple residential gate on a flat driveway will usually cost less than a heavy-duty commercial sliding gate on difficult soil.

Main cost factors include:

• Gate opening width
• Total track length
• Footing depth and width
• Soil condition
• Excavation difficulty
• Concrete volume
• Reinforcement requirements
• Drainage work
• Motor pad requirements
• Electrical conduit
• Site access
• Removal of old concrete
• Driveway repairs
• Engineering requirements
• Commercial or industrial use

A cheaper footing may seem attractive at first, but if it causes gate problems later, the repair cost can be much higher. For sliding gates, the footing is not the best place to cut corners.

Concrete Footing for Residential Sliding Gates

For residential properties, the footing should suit the driveway layout, gate size, and expected use. Most homes need a gate that opens smoothly, looks neat, and does not require constant maintenance. A good residential footing should be straight, reinforced, well-drained, and properly aligned with the driveway.

Residential sliding gates are often installed for privacy, security, child safety, pet control, and street appeal. If the footing is poorly finished, it can affect both appearance and function. Cracked concrete, crooked tracks, or rough operation can reduce the quality of the whole entrance.

For homes with automatic gates, the motor pad should be discreet but accessible. It should not be placed where garden soil, mulch, irrigation, or stormwater will constantly affect it.

Concrete Footing for Commercial Sliding Gates

Commercial sliding gates usually need stronger footing design because they may operate many times per day and handle larger vehicles. A commercial gate may be used by staff, delivery drivers, trades, visitors, and security teams. This increases wear on the track, wheels, motor, and concrete base.

Commercial properties may also require access control systems such as keypads, card readers, intercoms, vehicle loops, and safety sensors. These systems need conduit and stable mounting points, which should be planned before concreting.

For commercial and industrial gates, professional installation is strongly recommended. The footing should be designed to suit the traffic type, gate weight, safety requirements, and site layout.

Track Gate Versus Cantilever Gate Footing

Choosing between a track sliding gate and a cantilever sliding gate affects the footing design.

Feature	Track Sliding Gate	Cantilever Sliding Gate
Ground track	Yes	No
Footing location	Along gate travel path	Mainly at support posts
Best for	Flat, clean driveways	Gravel, uneven, or high-debris areas
Maintenance	Track needs cleaning	Less ground-track maintenance
Footing demand	Long strip footing	Stronger post footing
Cost	Often lower	Often higher
Vehicle crossing	Vehicles cross track	No track across driveway

A track gate is common and cost-effective for many homes. A cantilever gate may be better where a track is not practical, but it usually needs stronger support footings and more space beside the opening.

Final Checklist Before Pouring the Footing

Before concrete is poured, it is worth checking every key detail. Once concrete is in place, changes become harder and more expensive.

Item to Check	Why It Matters
Gate opening width	Confirms the correct gate size
Run-back space	Ensures the gate can fully open
Track line	Prevents alignment problems
Driveway slope	Affects levels and gate movement
Soil condition	Impacts footing depth and stability
Reinforcement	Reduces cracking and movement
Motor location	Ensures correct automation setup
Conduit location	Allows power and accessories
Drainage	Protects track and motor
Post positions	Keeps the gate guided and secure
Vehicle load	Determines footing strength
Future upgrades	Makes automation easier later

This checklist can help avoid costly mistakes and ensure the sliding gate system is ready for long-term use.

Conclusion

A concrete footing for a sliding gate is one of the most important parts of the whole gate installation. It supports the track, stabilises the posts, keeps the motor aligned, manages vehicle loads, and helps the gate operate smoothly for years. A good gate on a poor footing will eventually cause problems, but a well-designed footing gives the gate the solid base it needs.

For residential properties, the footing should be straight, reinforced, level, and well-drained. For commercial and industrial properties, the footing may need heavier construction, stronger reinforcement, and professional engineering input. Automatic sliding gates also require careful planning for the motor pad, conduit, access control, and drainage.

The best results come from planning the footing before installation begins. Soil condition, gate weight, driveway slope, run-back space, drainage, and electrical requirements should all be considered early. When the concrete footing is done properly, the sliding gate will be stronger, safer, quieter, and easier to maintain.
